Battery mining locomotives
Choose a battery mining locomotive by the train duty and the installed track. This range includes 3.5 t, 5 t and 12 t adhesive-mass references. Compare traction, curves and charging arrangements on the individual model pages; adhesive mass does not state how much a complete train can haul.
Models in this category
12 t Lithium Battery Mine Locomotive
CTY12/6.7.9GB — 12 t Lithium Battery Mine Locomotive
5 t Lithium Battery Mine Locomotive

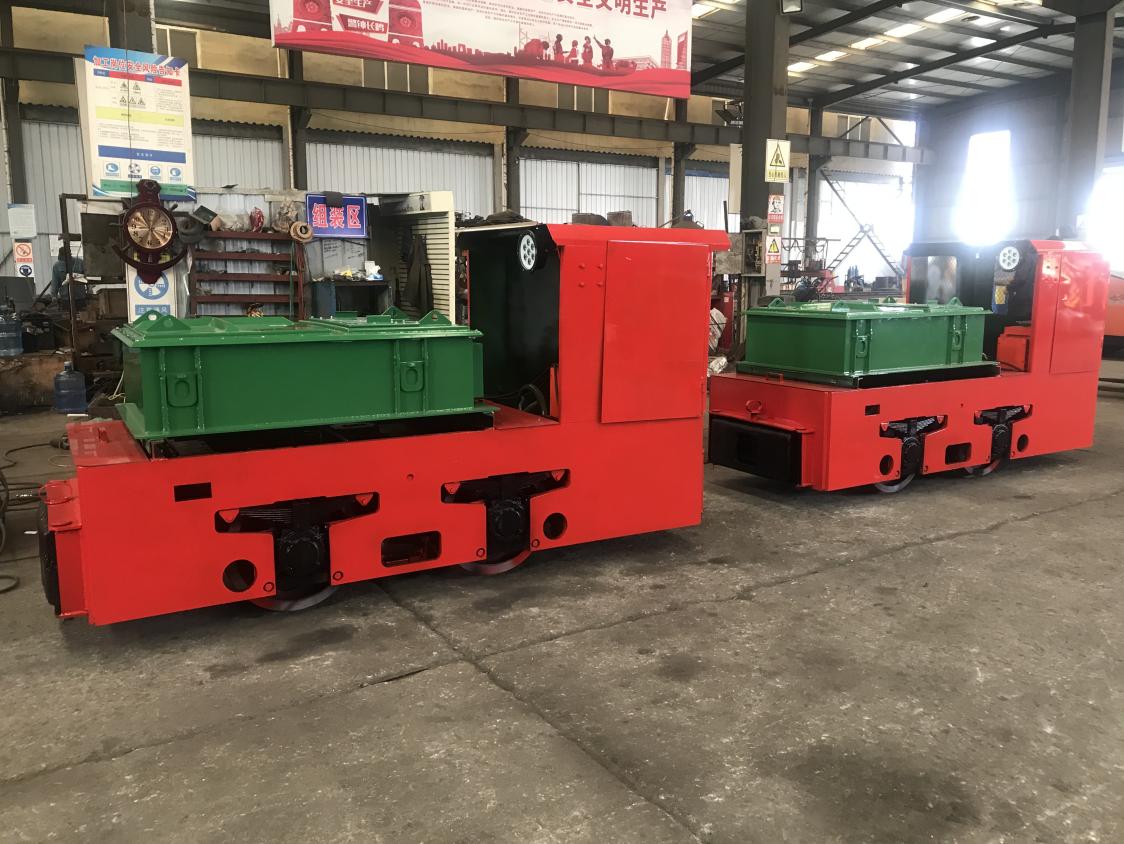

CTY5/6GB — 5 t Lithium Battery Mine Locomotive
3.5 t Battery Mine Locomotive

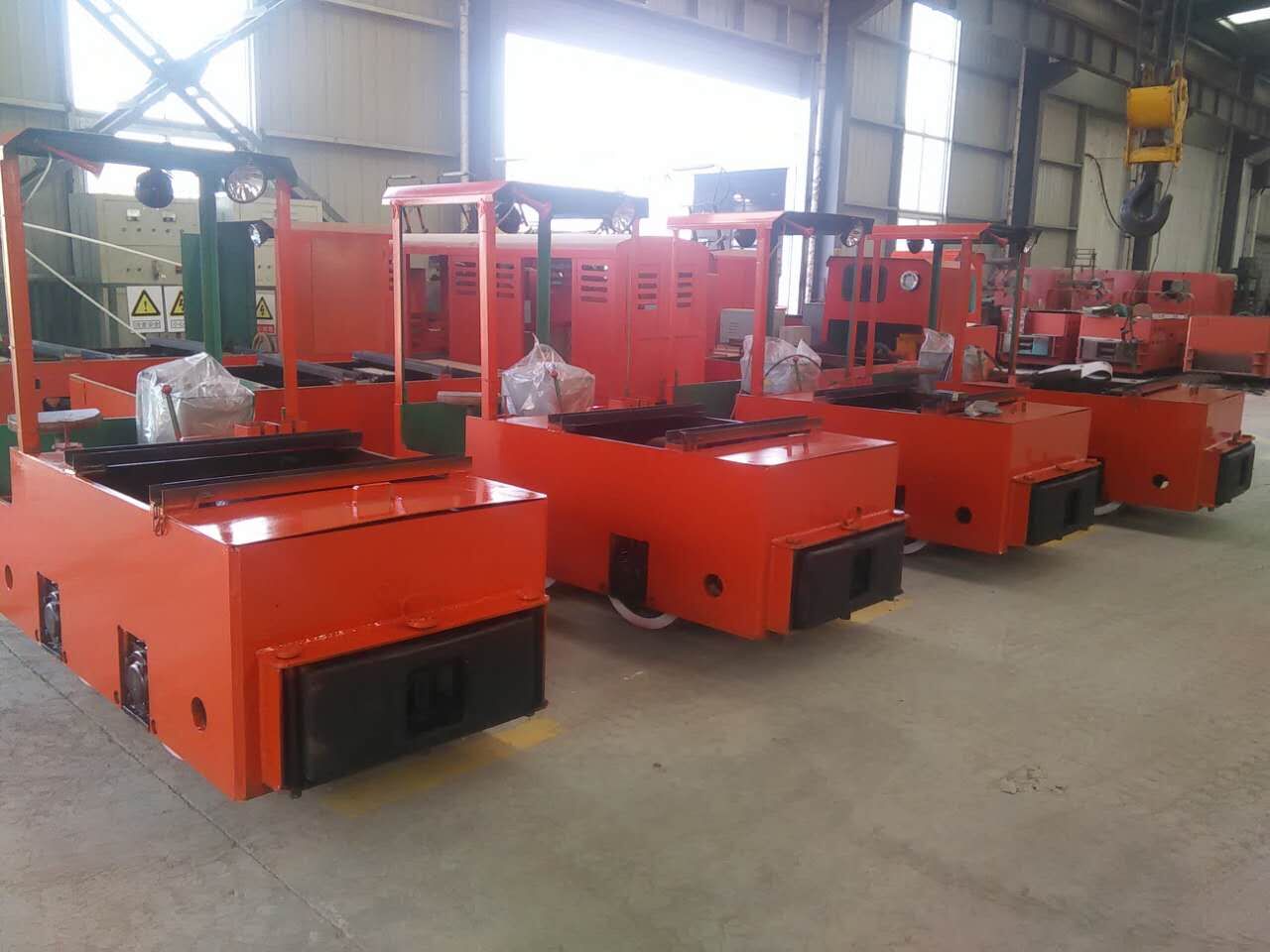

CTY3.5/6/G48 — 3.5 t Battery Mine Locomotive
Review each product page for documented technical data and configuration details that need confirmation.
Compare battery mine locomotive models by operating task
The CTY3.5/6/G48 is documented for small mine tunnels and shunting. CTY5/6GB and CTY12/6.7.9GB provide other adhesive-mass options with their own traction and battery data. Selecting the largest mass alone does not resolve track fit, braking requirements or the intended train formation.
For underground rail haulage, provide wagon count, loaded and empty train masses, gradients and required travel distance. Add the minimum curve radius, rail condition and coupling details. Review both the loaded journey and return movement before agreeing on a proposed locomotive.
Coordinate track gauge and battery arrangements
State the measured track gauge explicitly. The CTY12 source has differing gauge and designation references, while the CTY5 documents contain conflicting voltage values. Those details need written clarification for the exact locomotive, battery pack and charger combination.
Describe available charging time, the charging location and the electrical supply. Compare the operating schedule with the proposed battery arrangement and request the matching charging specification. A battery capacity figure by itself does not establish the duration of your haulage shift.
Choose around
your application.
Rail and haulage requirements
Provide track gauge, load, gradients, curve information and charging arrangements.
Configuration check
Request the current technical sheet and confirm the proposed configuration before ordering.
Selection questions
Are the listed tonnes the train payload?
They refer to adhesive mass. Train haulage capability requires a separate review of load, gradients, track conditions, traction and braking.
Are all models available for the same gauge?
Do not assume that. Give your exact track gauge and ask for a model-matched drawing, especially where the source has conflicting gauge references.
How do I specify the battery and charger?
Provide the work cycle and site electrical supply, then request a matched battery and charger specification. Resolve the CTY5 voltage discrepancy before agreeing on electrical equipment.
